Shank Adapters
Rock drilling tools

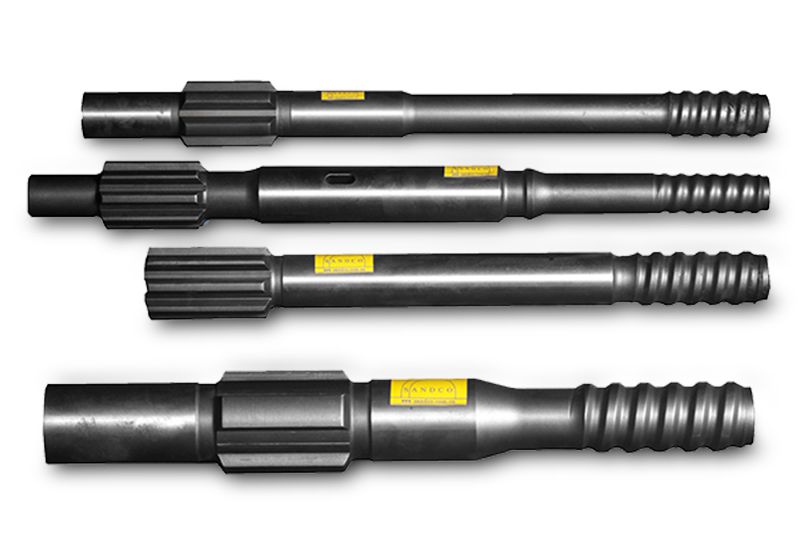

Shank adapters are rock drilling tools for the connection of rock drills and drilling rods. They are mostly used in quarries, mines and construction sites. Our shank adapters are compatible with famous drilling equipment from internationally well-known companies, like Atlas Copco, SandVik and Furukawa Electric.
SANDCO started producing shank adapters thirty years ago and are experienced in manufacturing quality shank adapters in accordance with international standards. In addition, we can provide customization services based on customers’ demands.

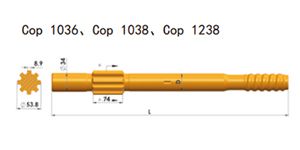

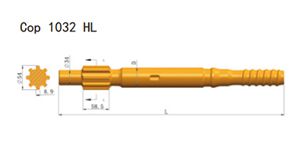

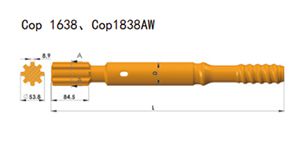

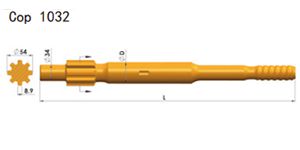

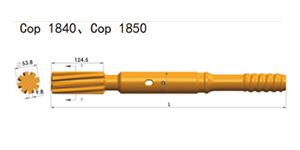

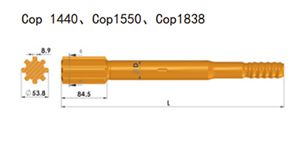

| Shank Adapter for Atlas Copco Rock Drills | L | D | Thread |
| mm | mm | ||
 | 550 550 550 550 | 45 45 45 45 | R28 R32 R35 R38 |
 | 510 510 | 45 45 | R32 T38 |
 | 485 485 485 485 | 38 38 38 38 | R32 R35 R38 T38 |
 | 500 500 500 575 575 575 575 575 575 575 575 | 38 38 45 38 38 38 38 45 45 45 45 | R32 T38 T45 R32 R35 R38 T38 R32 R38 T38 T45 |
 | 435 435 435 525 525 525 525 525 525 525 | 38 38 38 38 38 38 38 52 52 52 | R38 R38 T38 R32 R35 R38 T38 T38 T45 T51 |
 | 525 525 | 38 38 | R32 T38 |
 | 565 565 565 | 52 52 52 | T38 T45 T51 |

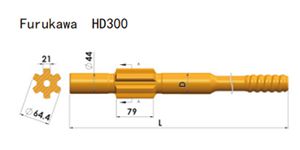

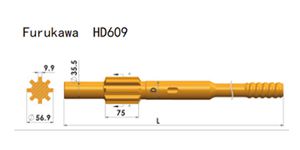

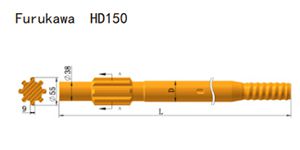

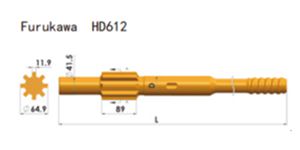

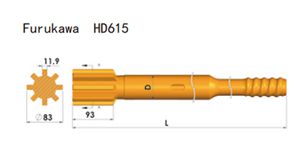

| Shank Adapter for Furukawa Rock Drills | L | D | Thread |
| mm | mm | ||
 | 525 525 | 39.8 39.8 | R38 T38 |
 | 654 654 | 44.7 44.7 | T38 T45 |
 | 690 620 | 44.7 44.7 | T38 T45 |
 | 715 884 | 50.8 50.8 | T45 T45 |
 | 700 700 | 57.8 57.8 | T45 T51 |

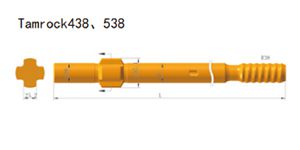

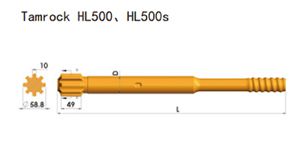

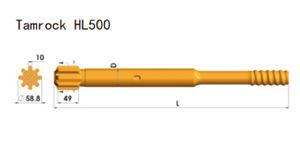

| Shank Adapter for Sandvik/Tamrock Rock Drills | L | D | Thread |
| mm | mm | ||
 | 430 | 38 | R32 |
 | 550 550 | 45 45 | T38 T45 |
 | 460 460 460 | 38 38 38 | R32 R38 T38 |

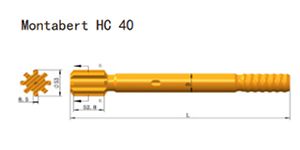

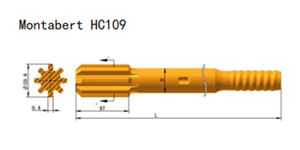

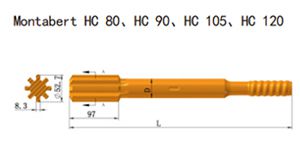

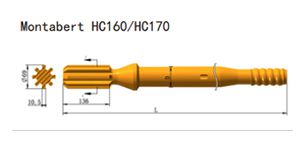

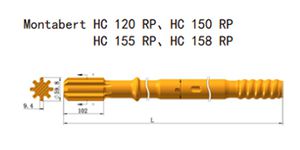

| Shank Adapter for Montabert Rock Drills | L | D | Thread |
| mm | mm | ||
 | 370 370 370 | 38 38 38 | R32 R38 T38 |
 | 440 440 440 | 38 38 38 | R32 R38 T38 |
 | 670 670 | 51 51 | T45 T51 |
 | 470 485 | 45 45 | R38 T38 |
 | 805 | 60 | T51 |
SANDCO is a trusted manufacturer of rock drilling tools with focus on R&D, manufacture and supply of a variety of high quality drilling consumables. For the past years, we have manufactured and supplied a complete range of top hammer drill tools and DTH drill tools for different applications including mining, quarrying, construction and tunneling. As a reliable drilling tools manufacturer, we are constantly searching for ways to improve the quality of rock drilling tools and deliver unparalleled services to win customers' satisfaction.
