Drifter Rods
Top hammer drilling tools
Drifter Rods
Top hammer drilling tools

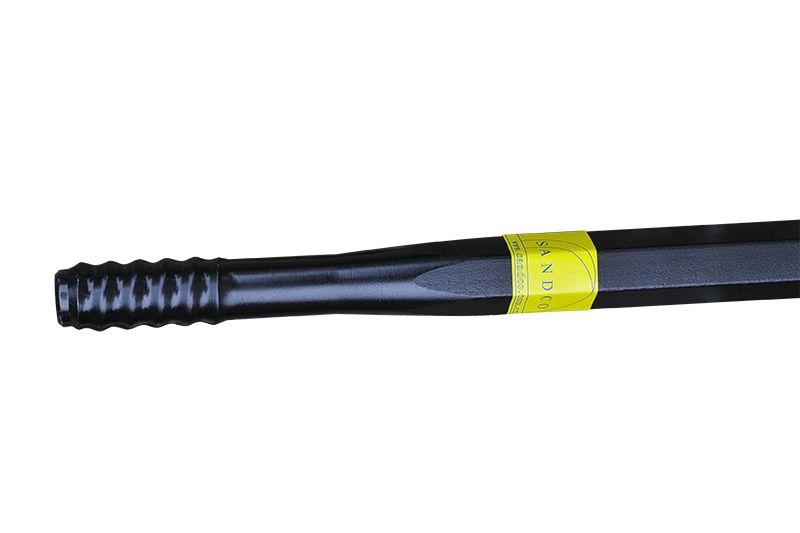

This drilling rod is made with a large diameter and is especially suitable to be used with large hydraulic drilling jumbo. It features excellent holing performance and is applicable for underground mining and infrastructure construction.

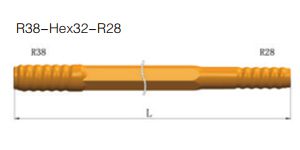

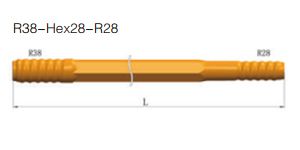

| Drifter Rod | L | H | Product Code | Weight Kg | ||
| mm | Foot /Inch | mm | Inch | |||
 | 2600 | 8’6 3/8" | 28 | 1 1/8 | 276-2826-5453 | 13 |
| 3090 | 10’1 5/8" | 28 | 1 1/8 | 276-2830-5453 | 15.9 | |
| 3700 | 12'1 5/8" | 28 | 1 1/8 | 276-2837-5453 | 18.5 | |
| 4005 | 13’1 43/64" | 28 | 1 1/8 | 276-2840-5453 | 20.5 | |
| 4265 | 13’11 1/2" | 28 | 1 1/8 | 276-2842-5453 | 21.3 | |
| 4305 | 14’1 31/64" | 28 | 1 1/8 | 276-2843-5453 | 21.5 | |
 | 3700 | 12’1 1/2" | 28 | 1 1/8 | 276-2837-5653 | 18.5 |
| 4305 | 14’1 31/64" | 28 | 1 1/8 | 276-2843-5653 | 21.5 | |

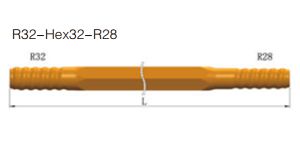

 | 3090 | 10’1 5/8" | 32 | 1 1/4 | 276-3230-5453 | 19.6 |
 | 3090 | 10’1 21/32" | 32 | 1 1/4 | 276-3230-5653 | 19.7 |
| 3700 | 12’1 1/2" | 32 | 1 1/4 | 276-3237-5653 | 23.6 | |
| 4305 | 14’1 31/64" | 32 | 1 1/4 | 276-3243-5653 | 27.3 | |

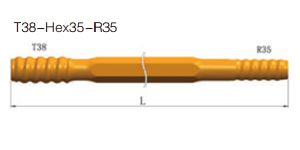

| Drifter Rod | L | H | Product Code | Weight Kg | ||
| mm | Foot /Inch | mm | Inch | |||
 | 3090 | 10’1 21/32" | 35 | 1 5/8 | 276-3530-5654 | 24 |
| 3700 | 12’1 1/2" | 35 | 1 5/8 | 276-3537-5654 | 28.7 | |
| 4305 | 14’1 3/64" | 35 | 1 5/8 | 276-3543-5654 | 33.7 | |
| 4915 | 16’1 1/2" | 35 | 1 5/8 | 276-3549-5654 | 38.2 | |
| 5525 | 18’1 33/64” | 35 | 1 5/8 | 276-3555-5654 | 43.1 | |
 | 3700 | 12’1 1/2" | 35 | 1 5/8 | 296-3537-7654 | 29.4 |
| 4305 | 14’1 3/64" | 35 | 1 5/8 | 296-3543-7654 | 34.4 | |
| 4915 | 16’1 1/2" | 35 | 1 5/8 | 296-3549-7654 | 38.9 | |
| 5525 | 18’1 33/64” | 35 | 1 5/8 | 296-3555-7654 | 43.8 | |
 | 3090 | 10’1 21/32" | 35 | 1 5/8 | 276-3530-7654 | 23.9 |
| 3700 | 12’1 1/2" | 35 | 1 5/8 | 276-3537-7654 | 28.6 | |
| 4305 | 14’1 3/64" | 35 | 1 5/8 | 276-3543-7654 | 33.6 | |
| 4915 | 16’1 1/2" | 35 | 1 5/8 | 276-3549-7654 | 38.3 | |
| 5525 | 18’1 33/64" | 35 | 1 5/8 | 276-3555-7654 | 43.2 | |
| 6135 | 20’1 1/2" | 35 | 1 5/8 | 276-3561-7654 | 47.9 | |
 | 3700 | 12’1 1/2" | 32 | 1 1/4 | 276-3237-5654 | 23.6 |
| 4305 | 14’1 31/64" | 32 | 1 1/4 | 276-3243-5654 | 27.5 | |
| 4915 | 16’1 1/2" | 32 | 1 1/4 | 276-3249-5654 | 31.4 | |
 | 3700 | 12’1 1/2" | 32 | 1 1/4 | 276-3237-7654 | 23.6 |
| 4305 | 14’1 31/64" | 32 | 1 1/4 | 276-3243-7654 | 27.5 | |

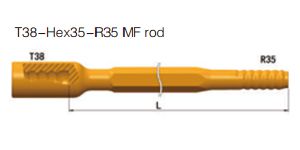

| Drifter Rod | L | H | Product Code | Weight Kg | ||
| mm | Foot /Inch | mm | Inch | |||
 | 4305 | 14’1 31/64” | 35 | 1 3/8 | 276-3543-7655 | 33.8 |
| 4915 | 16’1 1/2" | 35 | 1 3/8 | 276-3549-7655 | 38.4 | |
| 5525 | 18’1 33/64" | 35 | 1 3/8 | 276-3555-7655 | 43.3 | |
| 6135 | 20’1 1/2" | 35 | 1 3/8 | 276-3561-7655 | 48 | |
 | 4305 | 14’1 31/64" | 35 | 1 3/8 | 296-3543-7655 | 34 |
| 4915 | 16’1 1/2" | 35 | 1 3/8 | 296-3549-7655 | 38.6 | |
| 5525 | 18’1 33/64" | 35 | 1 3/8 | 296-3555-7655 | 43.5 | |
| 6135 | 20’1 1/2" | 35 | 1 3/8 | 296-3561-7655 | 48.2 | |

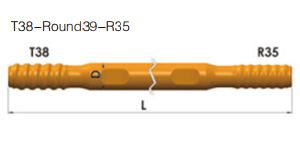

 | 4305 | 14’1 31/64" | 39 | 1 1/2 | 270-3943-7655 | 34.2 |
| 4915 | 16’1 1/2" | 39 | 1 1/2 | 270-3949-7655 | 39.2 | |
| 5525 | 18’1 33/64" | 39 | 1 1/2 | 270-3955-7655 | 44.3 | |
| 6135 | 20’1 1/2" | 39 | 1 1/2 | 270-3961-7655 | 49.3 | |
SANDCO is a trusted manufacturer of rock drilling tools with focus on R&D, manufacture and supply of a variety of high quality drilling consumables. For the past years, we have manufactured and supplied a complete range of top hammer drill tools and DTH drill tools for different applications including mining, quarrying, construction and tunneling. As a reliable drilling tools manufacturer, we are constantly searching for ways to improve the quality of rock drilling tools and deliver unparalleled services to win customers' satisfaction.
