Pneumatic Breaker / Jack Hammer Chisels
Moil points and flat chisels for air hammers
Pneumatic Breaker / Jack Hammer Chisels
Moil points and flat chisels for air hammers

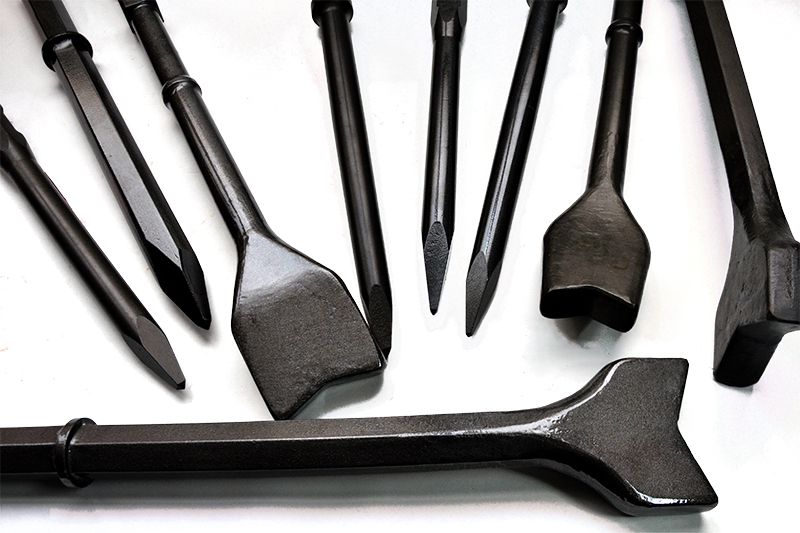

This pneumatic breaker is mostly used with pneumatic rock drill or air hammer to deliver excellent drilling performance. The shape of its head can be flat chisel or moil point, making it suitable to drill roads or rocks. The head of this jack hammer chisel is mostly hexagonal, and includes three sizes, namely 22 mm, 25mm and 32mm.
| Demolition Chisels | Ø（s） | L1 | L |
| mm | mm | mm | |

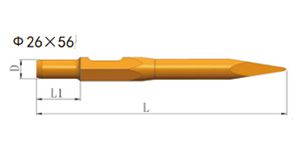

 | 26 26 | 56 56 | 415 415 |

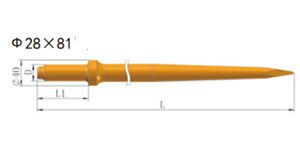

 | 28 28 28 28 | 81 81 81 81 | 445 445 600 600 |

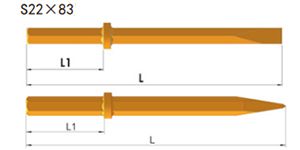

 | 22 22 22 | 83 83 83 | 433 450 533 |

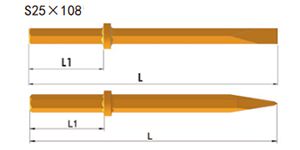

 | 25 25 25 25 25 | 108 108 108 108 108 | 300 400 500 558 718 |

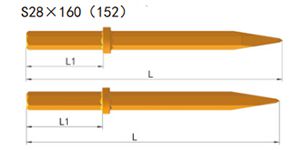

 | 28 28 | 152 160 | 600 762 |
| Air Hammer Chisels | Ø（s） | L1 | L | Head |
| mm | mm | mm | width | |

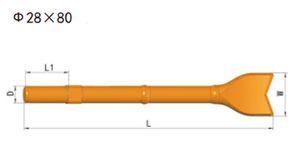

 | 28 28 | 80 80 | 515 550 | 80 85 |

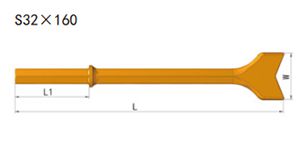

 | 32 | 160 | 570 | 100 |
SANDCO is a trusted manufacturer of rock drilling tools with focus on R&D, manufacture and supply of a variety of high quality drilling consumables. For the past years, we have manufactured and supplied a complete range of top hammer drill tools and DTH drill tools for different applications including mining, quarrying, construction and tunneling. As a reliable drilling tools manufacturer, we are constantly searching for ways to improve the quality of rock drilling tools and deliver unparalleled services to win customers' satisfaction.
