Integral Drill Steels
Top hammer drilling tools

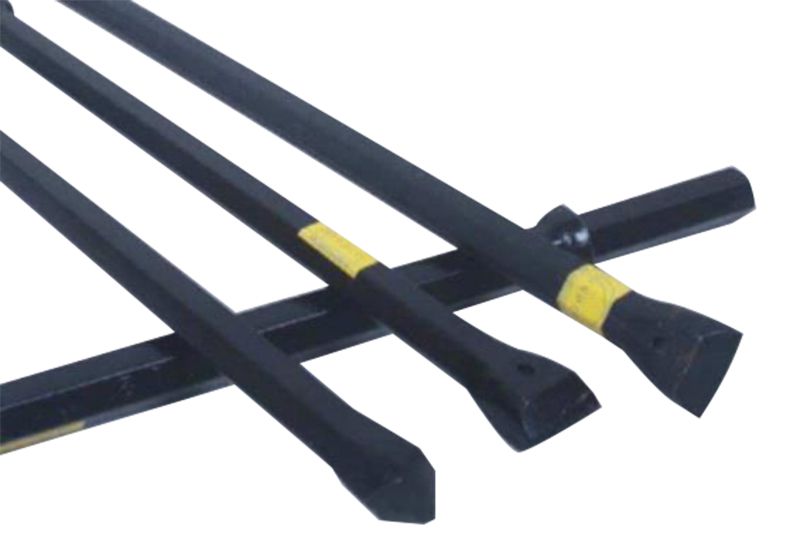

This integral drill steel is suitable to drill holes with a small diameter. Given that this drill steel’s head is equipped with tungsten carbide, it can drill rocks with no need to be connected with tapered drill bits. This is why this integral drill steel is an ideal alternative to tapered rods and tapered chisel bits.

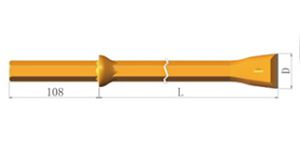

| 22mm（7/8’’）Integral Drill Steel | Model | L | D | ||
| mm | Foot/inch | mm | inch | ||
 | 11 | 800 1600 2400 3200 4000 4800 5600 6400 7200 | 2’ 7 1/2’’ 5’ 3’’ 7’ 10 1/2’’ 10’ 6’’ 13’ 1 1/2’’ 15’ 9’’ 18’ 4 1/2’’ 21’ 23’ 7 1/2’’ | 34 33 32 31 30 29 28 27 26 | 1 11/32 1 5/16 1 1/4 1 7/32 1 3/16 1 5/32 1 1/8 1 1/16 1 1/32 |
| 12 | 400 800 1600 2400 3200 4000 4800 5600 6400 | 1’ 3 3/4’’ 2’ 7 1/2’’ 5’ 3’’ 7’ 10 1/2’’ 10’ 6’’ 13’ 1 1/2’’ 15’ 9’’ 18’ 4 1/2’’ 21’ | 41 40 39 38 37 36 35 34 33 | 1 9/16 1 17/32 1 1/2 1 15/32 1 13/32 1 3/8 1 11/32 1 5/16 1 1/4 | |
| 13 | 800 1200 1600 2000 | 2’ 7 1/2’’ 3’ 11 1/4’’ 5’ 3’’ 6’ 6 3/4’’ | 33 32 31 30 | 1 5/16 1 1/4 1 7/32 1 3/16 | |
| 16 | 1200 1800 2400 | 3’ 11 1/4’’ 5’ 10 7/8’’ 7’ 10 1/2’’ | 34 33 32 | 1 11/32 1 5/16 1 1/4 | |
| 17 | 1200 1600 2000 | 3’ 11 1/4’’ 5’ 3’’ 6’ 6 3/4’’ | 40 39 38 | 1 9/16 1 17/32 1 1/2 | |
SANDCO is a trusted manufacturer of rock drilling tools with focus on R&D, manufacture and supply of a variety of high quality drilling consumables. For the past years, we have manufactured and supplied a complete range of top hammer drill tools and DTH drill tools for different applications including mining, quarrying, construction and tunneling. As a reliable drilling tools manufacturer, we are constantly searching for ways to improve the quality of rock drilling tools and deliver unparalleled services to win customers' satisfaction.
