Reaming Bits
Top hammer drilling tools
Reaming Bits
Top hammer drilling tools

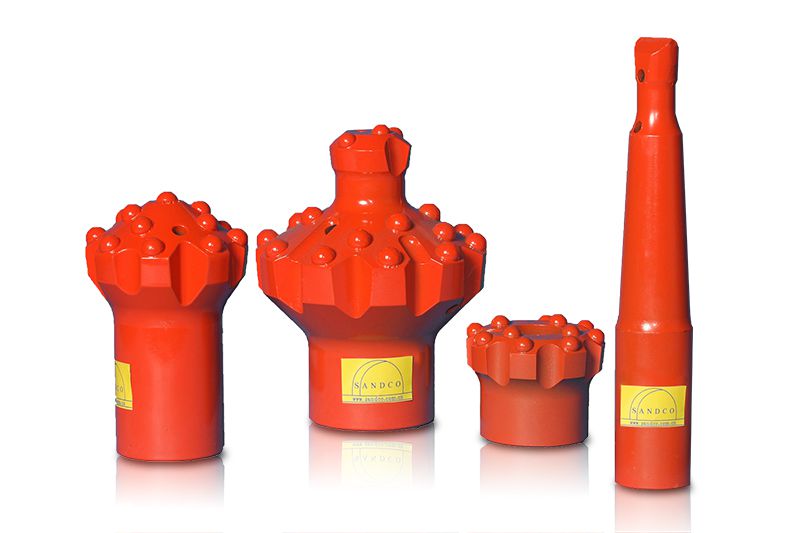

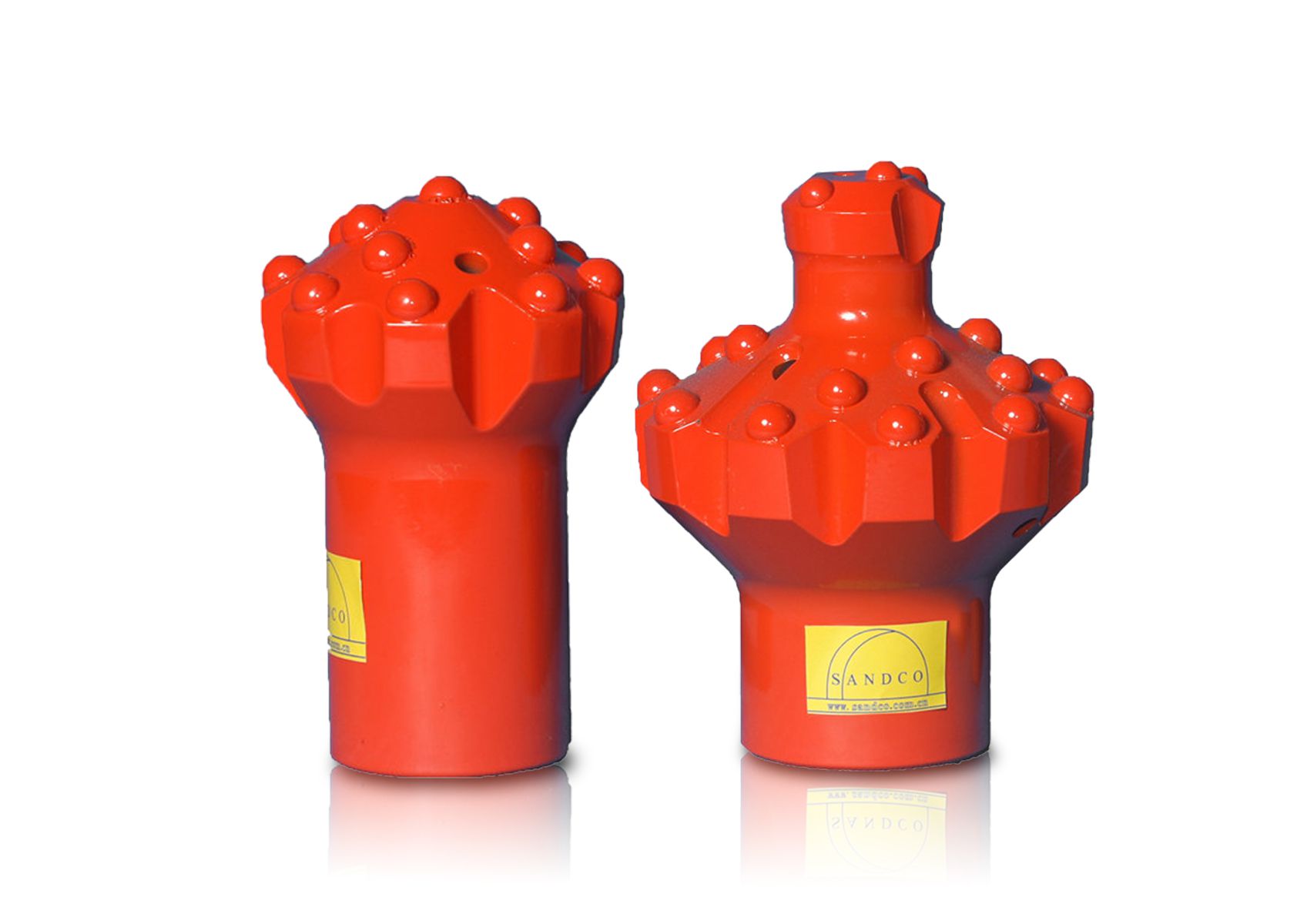

SANDCO’s reaming bits can be used with drill and drifter to drill smooth holes, especially the ones with large diameters. To accommodate customer-specific installation needs, our reaming bits can be made with different thread types, like R32, R38, T38, T45 and T51. Also, two kinds of reaming bits are supplied, one is integral reaming bit, and the other, split-type reaming bit.
| Reaming Bits | D | Buttons × Button Diameter | Gauge Button Angle | Thread | ||
| Dome Reaming Bit | mm | inch | Gauge Button | Face Button | ||
 | 89 | 3 1/2 | 12×12 | 3×10 | 35° | R32 |
 | 102 | 4 | 12×13 | 3×10 | 35° | R32 |
 | 127 | 5 | 12×13 | 3×13 | 35° | R35 |

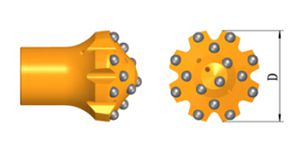

Reaming Bit
| Reaming Bits | D | Buttons × Button Diameter | Gauge Button Angle | Thread | ||
| Dome Reaming Bit | mm | inch | Gauge Button | Face Button | ||
 | 64 76 | 2 1/2 3 | 9×10 9×11 | 3×10 3×10 | 35° 35° | R28 R38 |

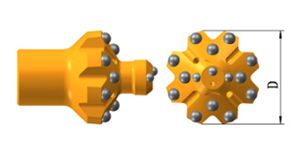

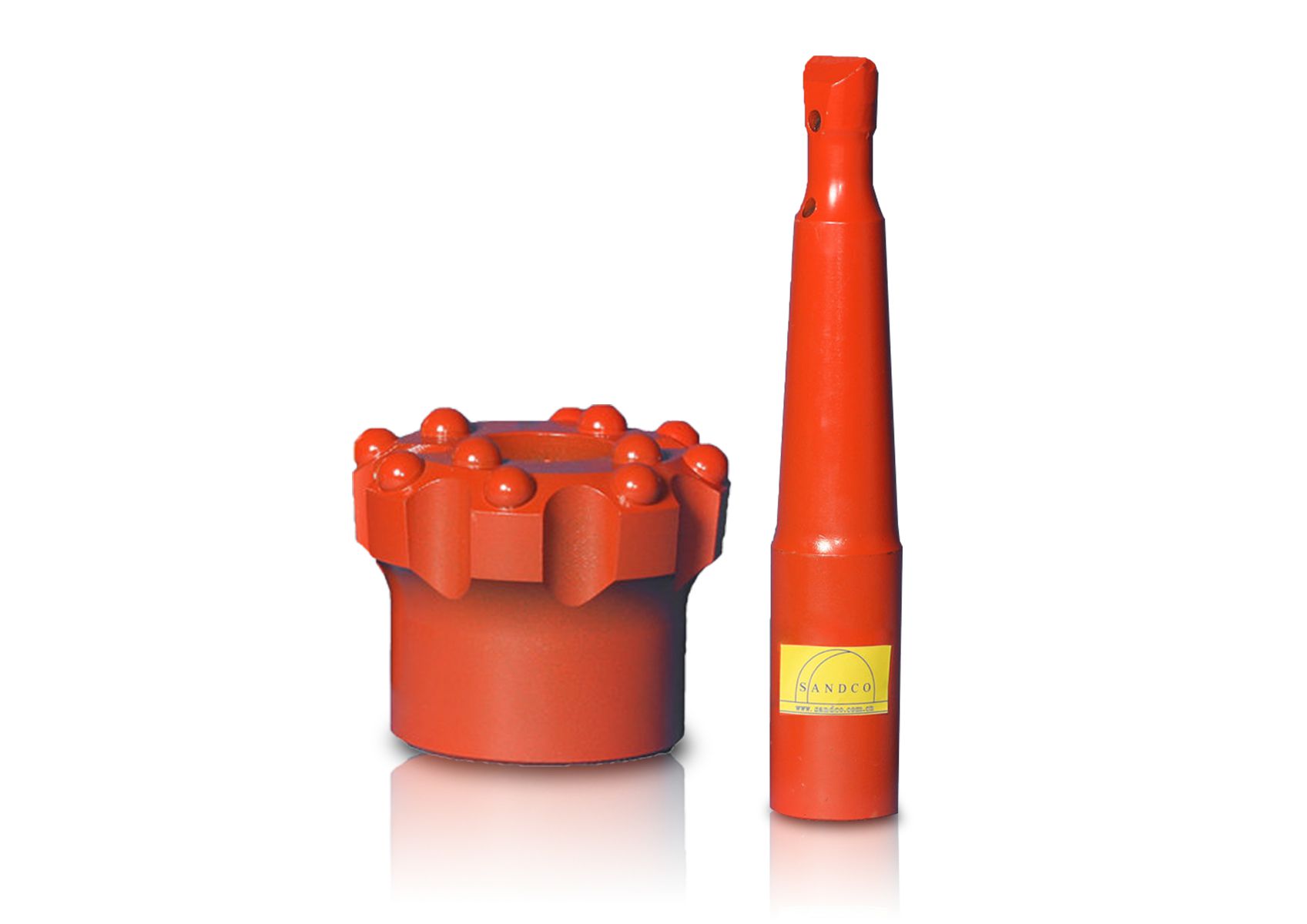

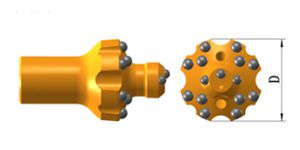

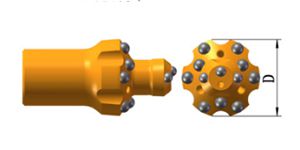

Reaming Bit with Pilot Adapter
SANDCO is a trusted manufacturer of rock drilling tools with focus on R&D, manufacture and supply of a variety of high quality drilling consumables. For the past years, we have manufactured and supplied a complete range of top hammer drill tools and DTH drill tools for different applications including mining, quarrying, construction and tunneling. As a reliable drilling tools manufacturer, we are constantly searching for ways to improve the quality of rock drilling tools and deliver unparalleled services to win customers' satisfaction.
